Product Description

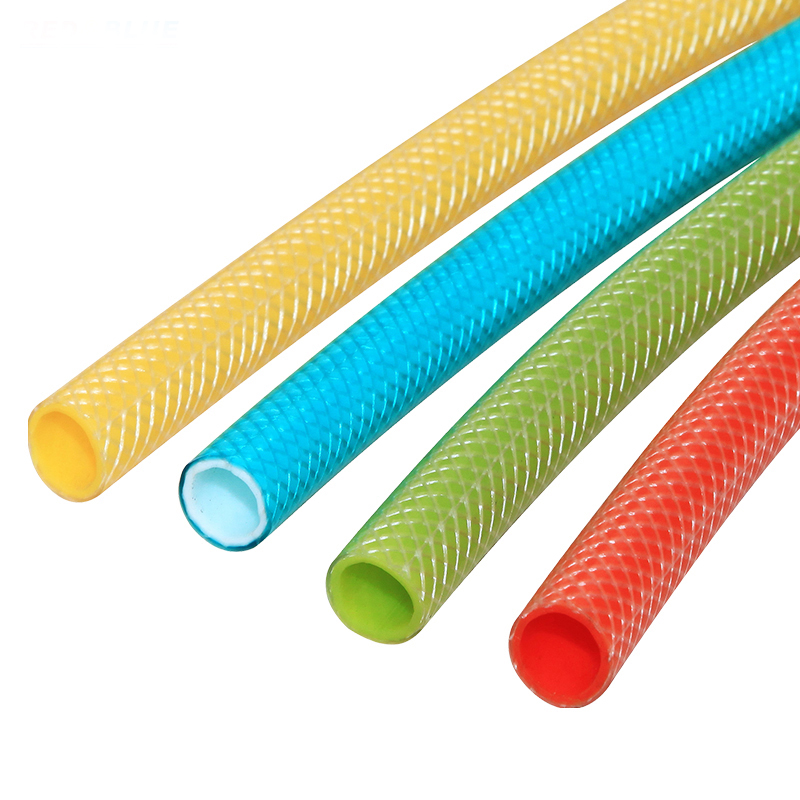

PVC REINFORCED HOSE

Resistance to high pressure
                                Chemical resistance
                                Good resistance to weather aging
                                UV proof
                  Kink resistant
Characteristic:
Light-weight
High transparency
General and higher both pressure option.

 Light-weight, flexibility even
                                at a low temperature
                                Resistance to high pressure
                                Abrasion-resistant cover
                                Good resistance to weather aging

Applications:

Water transfer at construction site,factory, farm,ship and yard.
Municipal maintenance and park departments
Washing and cleaning
Irrigation supply lines


Inch  I.D. O.D.  W.P   W.P  WEIGHT
mm mm bar bar kg/m
1/4 6 10 10 45 0.0678
1/4 6 11 12 50 0.0901
5/16 8 12 9 40 0.0848
5/16 8 13 10 45 0.1113
3/8 10 14 8 38 0.1017
3/8 10 15 10 43 0.1325
1/2 12 16 7 30 0.1187
1/2 12 17 8 40 0.1537
5/8 16 20 6 28 0.1527
5/8 16 21 8 32 0.1961
3/4 19 24 5 25 0.2278
3/4 19 25 8 28 0.2798
1 25 30 5 23 0.2914
1 25 31 7 25 0.3561
1-1/4 32 38 5 18 0.4451
1-1/4 32 39 6 20 0.5267
1-1/2 38 45 5 16 0.6157
1-1/2 38 46 6 18 0.7122
2 50 59 5 16 1.0396
2 50 60 5 18 1.1657
2-1/2 64 74 5 15 1.4625
2-1/2 64 75 6 18 1.6204
3 75 88 5 15 2.2456
3 75 90 6 18 2.6229
